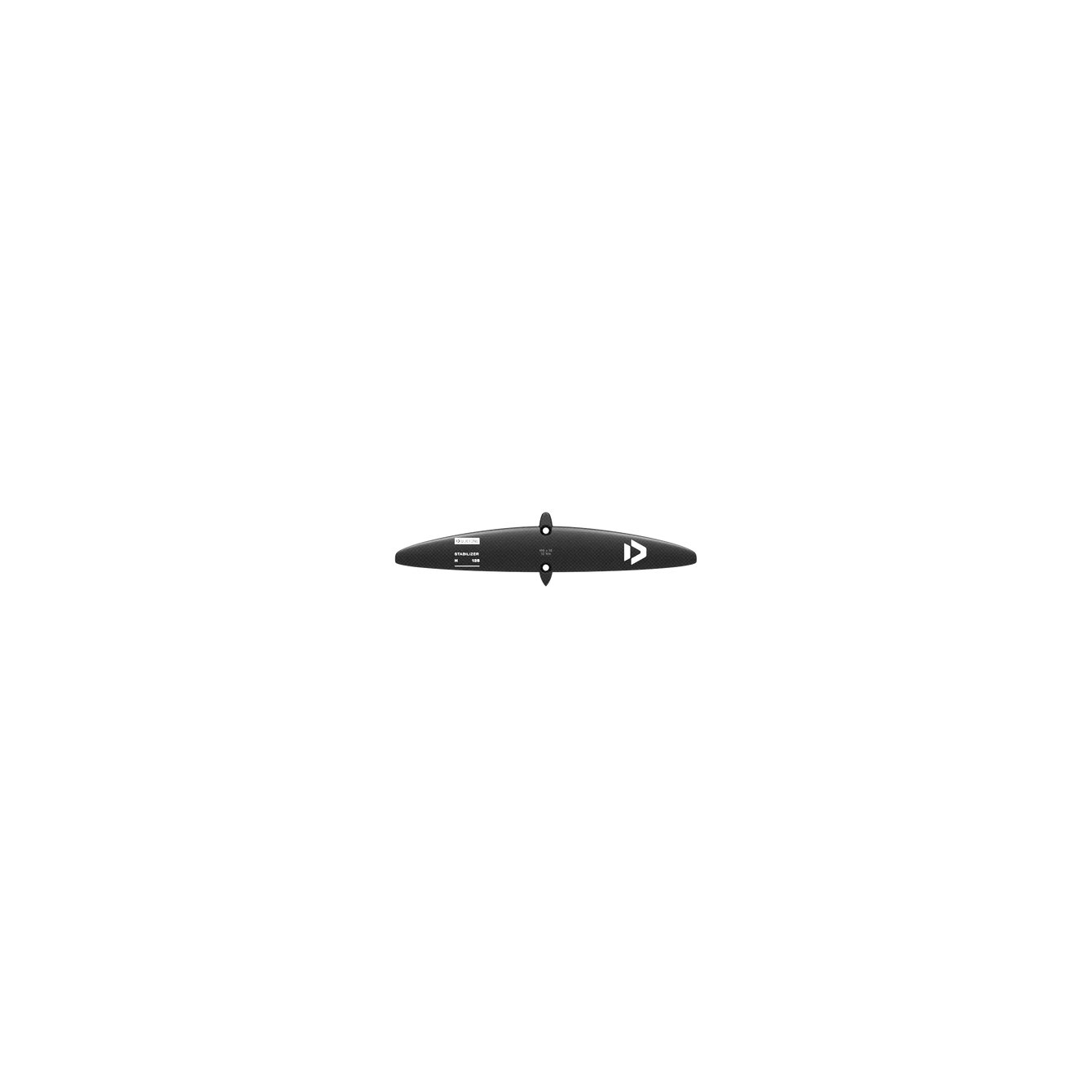

Duotone H Stabiliser Back Wing is a high aspect rear wing developed to maximise glide efficiency, pumping performance and overall foil efficiency. Designed to complement Duotone’s glide and pumping-oriented front wings, the Stabilizer H delivers reduced drag and exceptional projection, making it the preferred choice for downwind riders and anyone looking to extend pumping distance with minimal effort.
Its straight, high aspect outline and specialised profile create an efficient balance between speed and low energy consumption while maintaining a forgiving low stall speed. Whether you’re linking bumps downwind or chasing longer dock-start and pump sessions, the Stabilizer H offers the control and efficiency needed to keep flying for longer.

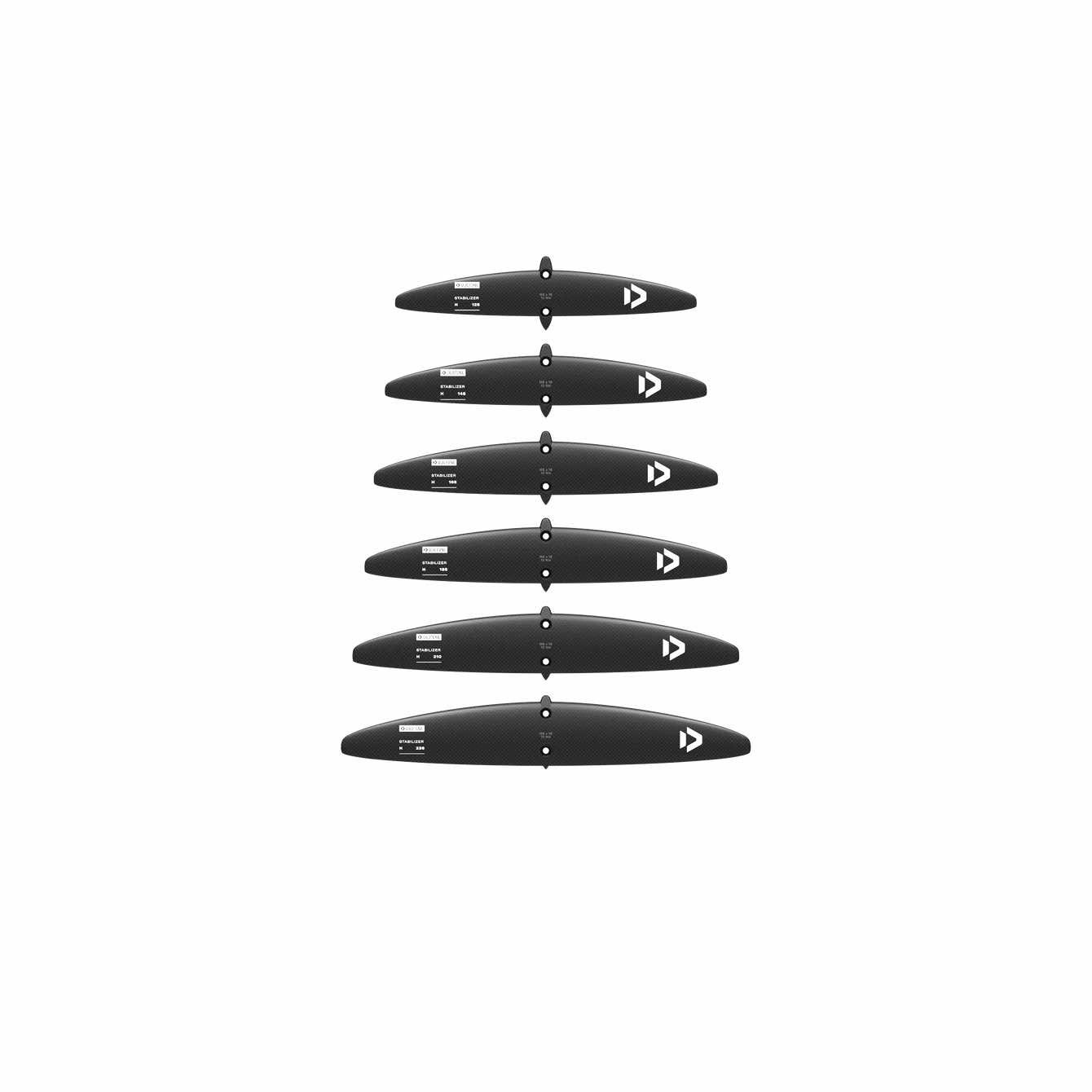

Available in six sizes from 125cm² to 235cm², the Stabilizer H allows riders to fine-tune their setup for their preferred balance of speed, glide and stability.
Key Features
- High aspect rear wing for maximum glide efficiency
- Excellent balance between pumping speed and low energy consumption
- Straight outline for efficient, low-drag performance
- Optimised for downwind, pumping and glide-oriented riding
- Special profile for increased projection and low stall speed
- Available in six sizes to suit a wide range of foil setups
Specifications
| Size | Surface Area | Surface Area (in²) | Span | Span (in) | Aspect Ratio | Screws | Recommended Torque |
|---|---|---|---|---|---|---|---|
| 125 | 125 cm² | 19.4 in² | 33 cm | 12.8 in | 8.5 | 2 × M6 × 16 | 10 Nm |
| 145 | 145 cm² | 22.5 in² | 35 cm | 13.7 in | 8.4 | 2 × M6 × 16 | 10 Nm |
| 165 | 165 cm² | 25.6 in² | 37 cm | 14.6 in | 8.4 | 2 × M6 × 16 | 10 Nm |
| 185 | 185 cm² | 28.7 in² | 39 cm | 15.4 in | 8.3 | 2 × M6 × 16 | 10 Nm |
| 210 | 210 cm² | 32.6 in² | 42 cm | 16.5 in | 8.3 | 2 × M6 × 16 | 10 Nm |
| 235 | 235 cm² | 36.5 in² | 44 cm | 17.5 in | 8.3 | 2 × M6 × 16 | 10 Nm |
